High Accuracy Handheld ESD Surface Resistance Meter

High Accuracy Handheld ESD Surface Resistance Meter

  • High Accuracy Handheld ESD Surface Resistance Meter
  • High Accuracy Handheld ESD Surface Resistance Meter
  • High Accuracy Handheld ESD Surface Resistance Meter
  • High Accuracy Handheld ESD Surface Resistance Meter
High Accuracy Handheld ESD Surface Resistance Meter
تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: allesd
رقم الموديل: GM3110
شروط الدفع والشحن:
الحد الأدنى لكمية: قابل للتفاوض
الأسعار: قابل للتفاوض
تفاصيل التغليف: 1 قطعة / كيس OPP
وقت التسليم: 25-40 أيام العمل
شروط الدفع: تي/تي
القدرة على العرض: 10000 كجم شهريا
اتصل
مفصلة وصف المنتج
اسم المنتج: اختبار مقاومة السطح مزود الطاقة: بطارية 9 فولت 6F22
نطاق قياس المقاومة: 10e3-10e10 خطأ قياس المقاومة: ± مرتبة واحدة من حيث الحجم
دقة قياس درجة الحرارة: ± 2 °C/± 36 °F نطاق قياس درجة الحرارة: 0 درجة مئوية~50 درجة مئوية/32~122 درجة فهرنهايت
وقت استجابة قياس المقاومة: 1S مقاس:: 63.6 × 31 × 125.8 ملم
وزن: 122 ز

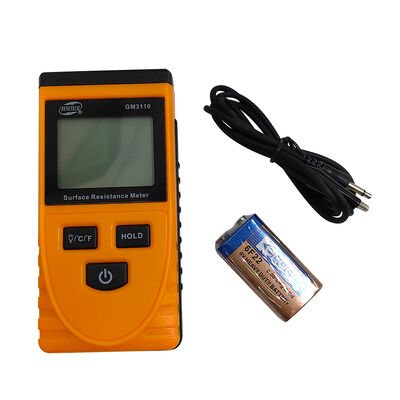

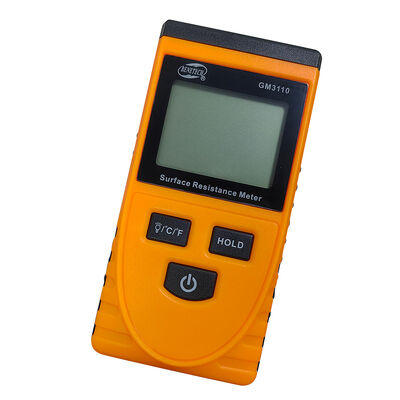

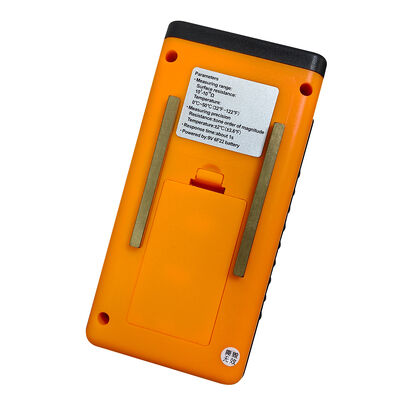

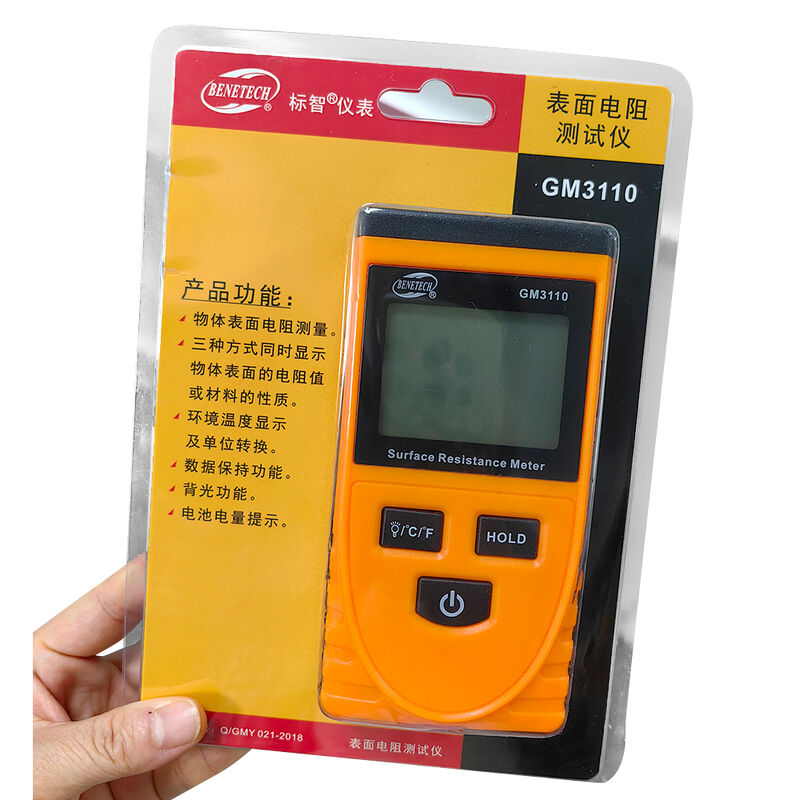

High Accuracy ESD Antistatic Surface Resistivity Tester Handheld ESD Surface Resistance Meter



Description:



GM3110 Surface Resistance Tester, also known as high-precision portable insulation resistance tester or electrostatic detector, is an instrument designed specifically for measuring material surface resistance and static electricity.



Model SL-030B
Resistance measurement range 10e3-10e10
Resistance measurement error ± one order of magnitude
Resistance measurement response time 1s
Temperature measurement range 10e3-10e12 ohms
Instrument weight 0 ° C~50c/32~122 ° F
Temperature measurement accuracy ± 2 ℃/± 36 ° F
Power supply 9V 6F22 battery
Size 63.6 × 31X125.8mm
Weight 122g





Product Function Introduction



● Surface resistance test of objects

● Three ways to simultaneously display the surface resistance value or material properties of an object

● Environmental temperature measurement

● Temperature unit conversion

● Data retention function

● LCD backlight display

● pairs of ground resistance measurement

● Automatic shutdown function



Operating instructions:

1. Press the few keys to turn on the device, and the LCD will enter the normal measurement screen while displaying the ambient temperature value.
2. Place the two electrodes of the machine tightly against the surface of the tested material, and for about 1second, the LCD will display the surface resistance value and conductivity properties of the tested material, indicating whether it is a conductor, anti-static material, or insulating material.
3. Ground resistance measurement: Insert the grounding wire into
the grounding socket at the front end of the instrument, ground the other end of the grounding wire, and keep the right electrode of the instrument tightly attached to the surface of the measured object. The resistance value displayed on the LCD is the ground resistance value. (At this time, the left measuring electrode should not touch the surface of the object).
4. Data retention: After measuring a data, press the HOLD key to keep the data on the LCD screen, and then press the HOLD key to exit the retention function.
5. Backlight control: When turned on, press the/C/F key to turn on the backlight for easy measurement at night. Press it again to turn off the backlight.
6. Temperature unit conversion: In the power on state, long press/℃/down key to achieve temperature unit conversion.



More picture :
